PortraitFix



Our economical and easy to install brackets with pre-drilled fastening points which ensure 100mm air gap for better thermal eff iciency. Non-penetrative installation using structural adhesive can be done. Installed capacity of more than 20MW.

  • Fits all trapezoidal sheet of 0.5mm thickness
  • Capable of withstanding windspeed of 55m/Sec
  • 100 mm air gap is maintained for thermal efficiency
  • Can be fixed without penetration
  • Suitable for roof tilt upto 20 degree
  • Portrait orientation
  • Virgin Aluminum 6063 T6
  • Fixed with rivets
  • 10 year material warranty
  • UV Resistant sealant used for weather proofing

Eco-Portrait



Having all the advantages of PortraiFix except being more economical. The air gap is minimum 65mm.

  • Fits all trapezoidal sheet of 0.5mm thickness
  • Capable of withstanding windspeed of 55m/Sec
  • 70 mm air gap is maintained
  • Suitable for roof tilt upto 20 degree
  • Portrait orientation
  • Virgin Aluminum 6063 T6
  • Fixed with rivets
  • 10 year material warranty
  • UV Resistant sealant used for weather proofing

Landscape Brackets



Most economical and easy way of rooftop solar panel mounting. Brackets with pre-drilled fastening points to suit most popular roofing sheet profiles. Air gap of 100mm is ensured. Installed capacity of more than 3MW.

  • Most economical structure solution
  • Fixed to the crest of the matching trapezoidal profile of 0.5mm thickness
  • 100 mm air gap is maintained for thermal efficiency
  • Can be fixed without penetration
  • Suitable for roof tilt upto 20 degree
  • Virgin Aluminum 6063 T6
  • Fixed with rivets
  • 10 year warranty
  • UV Resistant sealant used for weather proofing

Rail System



Our rails are available in 3.2m, 4.5m & 5.2m. Custom length are selected as per project requirements. Our rail clamping system ensure that the overhangs do not excess 200mm while maintaining Air gap of 100mm. Installed capacity of more than 4MW.

  • Suitable for maximum purlin spacing of 1.5m
  • Capable of withstanding 55m/sec of wind speed
  • 6.3mm dia coated screw used for fastening
  • SS 304 fasteners
  • Virgin Aluminum 6063 T6
  • 10 year material warranty
  • Potrait and landscape orientation feasible
  • Fixed to purlins
  • UV resistant sealant used for weather proofing

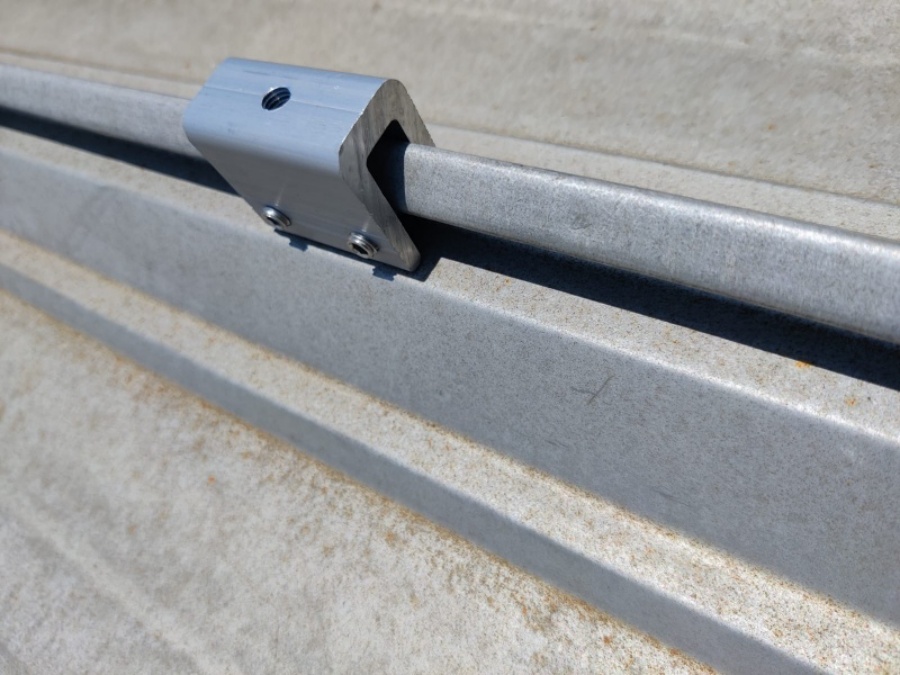

Standing Seam



We have non-penetrative standing seam brackets for seam thickness up to 19mm. Kirby standing seam roof sheet brackets are available. Standing seam brackets for rail mounting & direct solar panel mounting are available. Brackets have been tested at NABL accredited labs at different tightening torques. Installed capacity of more than 4MW.

  • Brackets suitable for seam width of 19mm
  • Brackets for cable tray fixing also available
  • Non penetrative fixing
  • Capable for withstanding 50m/sec wind speed
  • SS 304 fasteners
  • Virgin Aluminium 6063 T6
  • 10 year material warranty

KlipLok



Tata Bluescope Lysaght Kliplok 406 and 700 profile brackets are available for non-penetrative and easy installation. KlipLok 406 bracket is direct mounting or rail mounting. The Kliplok 700 bracket is direct mounting using integrated rail.

  • Brackets for Kliplok profile 700 & 406
  • Three brackets types available
  • Landscape orientation
  • Capable of withstanding 50m/sec wind speed
  • Non penetrative
  • SS 304 fasteners
  • Virgin aluminum 6063 T6
  • 10 year material warranty

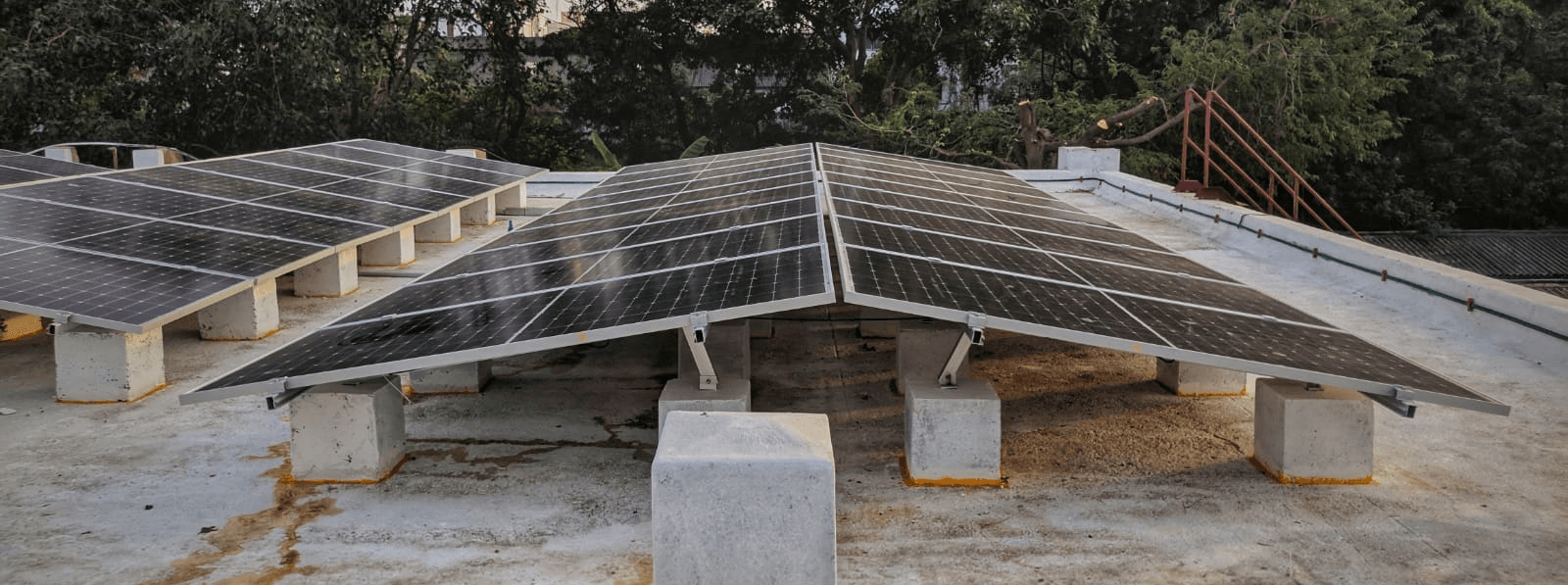

East - West / North / Concrete Rooftops

concreteroof



We provide custom design based on the sub-structure available at site. Standard orientation is portrait. Installed capacity of more than 3MW.

  • Designed for max angle of inclination of 15 degree
  • Capable of withstanding wind speed of 55m/sec
  • Fastened on purlin on the valley
  • UV resistant sealant used for weather proofing
  • Potrait orientation
  • Fixed using ss rivets / coated screws
  • Virgin Aluminum 6063 T6
  • 10 year material warranty

Concrete Roof Brackets



We provide flat roof structure for any angle of inclination, Sloped concrete roof structure and fixed 10deg bracket solutions. Installed capacity of more than 4MW.

  • Solution for flat and inclined concrete solution
  • Anchored to balast solution with fixed angle of inclination
  • Fixed 10 degree bracket based solution
  • 10 degree solution can be fixed using structural adhesive
  • Flat bracket for sloping concrete roof
  • Capable of with standing wind speed of 55m/sec
  • Virgin Aluminum 6063 T6
  • SS 304 fasteners are used
  • Material warranty of 10 years
